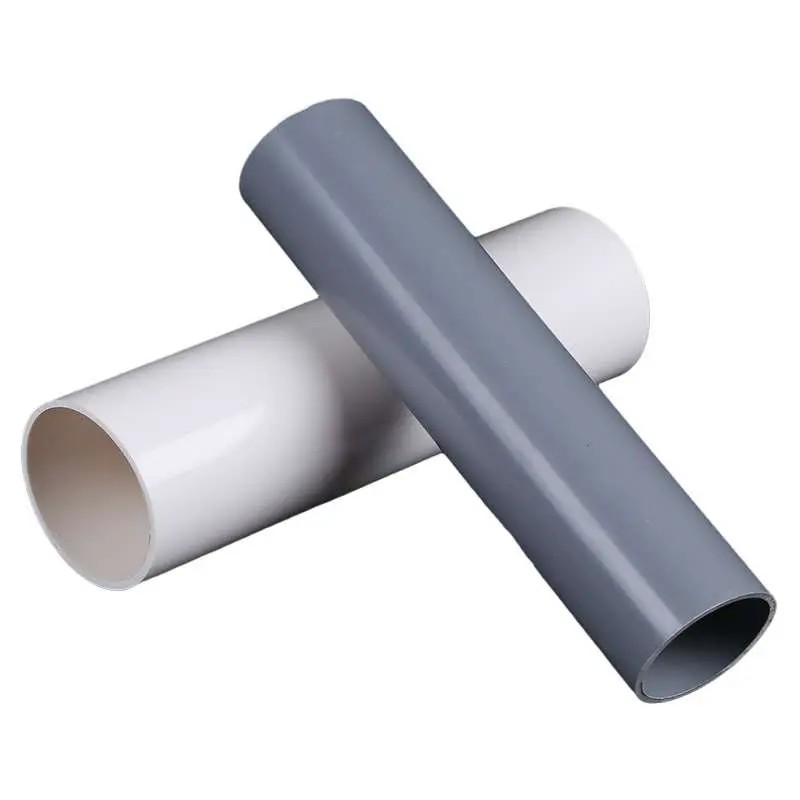

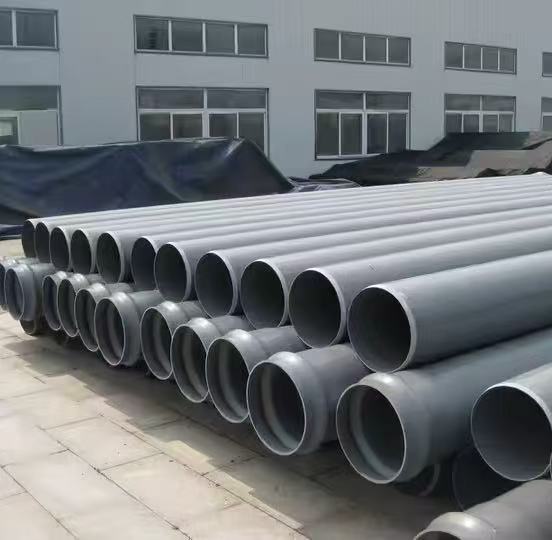

PVC-U Drainage Pipe

product details

PVC-U drainage pipes are manufactured from polyvinyl chloride resin, engineered for building and municipal drainage systems. Lightweight, high-strength, corrosion-resistant, flame-retardant and electrically non-conductive, the pipe offers a smooth interior for high-velocity flow and resistance to blockage.

It is resistant to acids, alkalis, oils and weathering, suitable for domestic sewage and stormwater disposal. Socket-type solvent cement joints allow fast installation and versatile layout configuration with a full range of fittings.

It is widely used in building drainage stacks, stormwater downpipes, municipal residential drainage, industrial effluent systems, ventilation ducts and agricultural drainage channels, fully replacing traditional cast iron pipelines.

Item	PVC-U Drainage Pipe
Material	PVC-U
Standard	GB/T 5836.1
Common Size (DN/mm)	DN50 to DN1200
Pressure / Stiffness	N/A
Connection	Solvent Cement Socket
Application	Building drainage, municipal stormwater, factory sewage
Key Advantages	High drainage efficiency, light weight, replaces cast iron pipe

Nominal outside diamete	Wall thickness	Deviation	Nominal pressure	Nominal outside diamete	Wall thickness	Deviation	Nominal outside diamete
mm	mm	Deviation	Mpa	mm	mm	Deviation	Mpa
50	2	0.4	0.8	140	3.5	0.6	0.63
	2.4	0.5	1		4.3	0.7	0.8
	3	0.5	1.25		5.4	0.9	1
	3.7	0.6	1.6		6.7	1.1	1.25
	4.6	0.7	2		8.3	1.3	1.6
	5.6	0.9	2.5		10.3	1.6	2
63	2	0.4	0.63		12.7	2	2.5
	2.5	0.5	0.8	160	4	0.6	0.63
	3	0.5	1		4.9	0.8	0.8
	3.8	0.6	1.25		6.2	1	1
	4.7	0.8	1.6		7.7	1.2	1.25
	5.8	0.9	2		9.5	1.5	1.6
	7.1	1.1	2.5		11.8	1.8	2
75	2.3	0.5	0.63	180	4.4	0.7	0.63
	2.9	0.5	0.8		5.5	0.9	0.8
	3.6	0.6	1		6.9	1.1	1
	4.5	0.7	1.25		8.6	1.3	1.25
	5.6	0.9	1.6		10.7	1.7	1.6
	6.9	1.1	2		13.3	2	2
	8.4	1.3	2.5		16.4	2.5	2.5
90	2.8	0.5	0.63	200	4.9	0.8	0.63
	3.5	0.6	0.8		6.2	1	0.8
	4.3	0.7	1		7.7	1.2	1
	5.4	0.9	1.25		9.6	1.5	1.25
	6.7	1.1	1.6		11.9	1.8	1.6
	8.2	1.3	2		14.7	2.3	2
	10.1	1.6	2.5		18.2	2.8	2.5
110	2.7	0.5	0.63	225	5.5	0.9	0.63
	3.4	0.6	0.8		6.9	1.1	0.8
	4.2	0.7	1		8.6	1.3	1
	5.3	0.8	1.25		10.8	1.7	1.25
	6.6	1	1.6		13.4	2.1	1.6
	8.1	1.3	2		16.6	2.5	2
	10	1.5	2.5	250	6.2	1	0.63
125	3.1	0.6	0.63		7.7	1.2	0.8
	3.9	0.6	0.8		9.6	1.5	1
	4.8	0.8	1		11.9	1.8	1.25
	6	0.9	1.25		14.8	2.3	1.6
	7.4	1.2	1.6		18.4	2.8	2
	9.2	1.4	2
	11.4	1.8	2.5
Nominal outside diamete	Wall thickness	Deviation	Nominal outside diamete	Nominal outside diamete	Wall thickness	Deviation	Nominal outside diamete
280	6.9	1.1	0.63	560	13.7	2.1	0.63
	8.6	1.3	0.8		17.2	2.6	0.8
	10.7	1.7	1		21.4	3.3	1
	13.4	2.1	1.25		26.7	4.1	1.25
	16.6	2.5	1.6		33.2	5	1.6
	20.6	3.1	2		41.2	6.2	2
315	7.7	1.2	0.63	630	15.4	2.4	0.63
	9.7	1.5	0.8		19.3	2.9	0.8
	12.1	1.9	1		24.1	3.7	1
	15	2.3	1.25		30	4.5	1.25
	18.7	2.9	1.6		37.4	5.7	1.6
	23.2	3.5	2		46.3	7	2
355	8.7	1.4	0.63	710	17.4	2.7	0.63
	10.9	1.7	0.8		21.8	3.3	0.8
	13.6	2.1	1		27.2	4.1	1
	16.9	2.6	1.25		33.9	5.1	1.25
	21.1	3.2	1.6		42.1	6.4	1.6
	26.1	4	2		52.2	7.9	2
400	9.8	1.5	0.63	800	15.7	2.4	0.5
	12.3	1.9	0.8		19.6	3	0.63
	15.3	2.3	1		24.5	3.7	0.8
	19.1	2.9	1.25		30.6	4.6	1
	23.7	3.6	1.6		38.1	5.8	1.25
	29.4	4.5	2		47.4	7.2	1.6
450	11	1.7	0.63	900	17.6	2.7	0.5
	13.8	2.1	0.8		22	3.3	0.63
	17.2	2.6	1		27.6	4.2	0.8
	21.5	3.3	1.25		34.4	5.2	1
	26.7	4.1	1.6		42.9	6.5	1.25
	33.1	5	2		53.3	8	1.6
500	12.3	1.9	0.63	1000	19.6	3	0.5
	15.3	2.3	0.8		24.5	3.7	0.63
	19.1	2.9	1		30.6	4.6	0.8
	23.9	3.6	1.25		38.2	5.8	1
	29.7	4.5	1.6		47.7	7.2	1.25
	36.8	5.6	2	1200	23.5	3.6	0.5
					29.4	4.5	0.63
					36.7	5.6	0.8
					45.9	6.9	1

Notes on pipelines：

1. Install with a fixed drainage slope, ensure smooth gravity flow, no reverse slope and sedimentation blockage; the pipe is for normal temperature drainage only, prohibit discharge of high-temperature sewage and hot oil.

2. Adopt socket adhesive connection, apply adhesive evenly, avoid excess adhesive flowing into the pipe to form bumps and cause blockage.

3. The material is brittle, avoid violent impact, extrusion and heavy pressure during handling and installation, especially in low temperature environment.

4. Set pipe supports and hangers at reasonable intervals to prevent pipeline sagging, dislocation and joint damage.

5. Prohibit contact with strong organic solvents (such as gasoline, benzene) to prevent pipe corrosion and dissolution.

6. Not suitable for conveying strong acid and alkali corrosive sewage; clean the pipeline regularly to remove grease and sediment.
