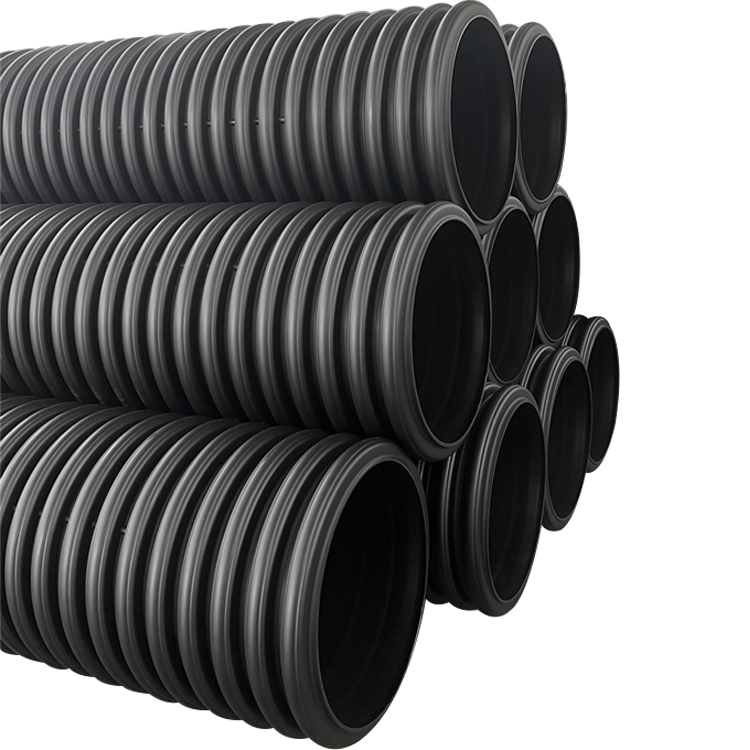

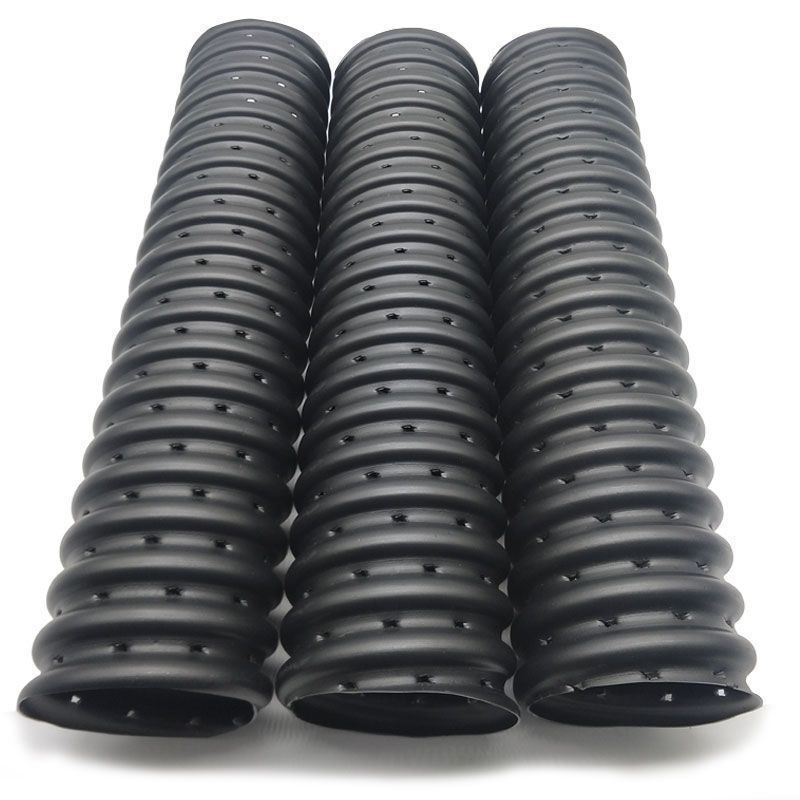

Carbon Spiral Corrugated Pipe

product details

Carbon spiral corrugated conduit is produced from modified polypropylene compounded with high-strength carbon particles and anti-aging additives, via spiral extrusion technology. It offers high flexibility, compressive strength and bendability for installation in complex terrain and tight-radius bends.

Resistant to temperature extremes, acids, alkalis and weathering, it provides excellent electrical insulation to protect cables from compression, moisture and soil corrosion. The conduit can be directly buried without concrete encasement, using simple coupler connections for high installation efficiency.

It is widely used in street lighting circuits, traffic signal cabling, industrial park low-voltage systems, municipal distribution networks, highway communication ducts and landscaping cable protection.

Item	Carbon Spiral Corrugated Conduit
Material	Modified PP with Carbon
Standard	N/A
Common Size (DN/mm)	DN50 to DN200
Pressure / Stiffness	N/A
Connection	Special Coupler
Application	Street lighting, traffic signals, low-voltage cable protection
Key Advantages	Flexible, bendable, insulated, direct burial available

Model (Inner Diameter Φ)	Inner Diameter Range	Outer Diameter Range	Wall Thickness ≥	Peak Distance Range	Length	Common Ring Stiffness	Typical Application Scenarios	Model Nomenclature Example
Φ20	20±2.0	27	1.0	-	200	SN4/SN8	Protection of small weak current and instrument cables	Φ20/PE Carbon Fiber Corrugated Pipe/SN8
Φ25	25±2.0	32	1.0	-	200	SN4/SN8	Protection of small weak current and instrument cables	Φ25/PE Carbon Fiber Corrugated Pipe/SN8
Φ32	32±3.0	40	1.0	-	200	SN4/SN8	Protection of small weak current and instrument cables	Φ32/PE Carbon Fiber Corrugated Pipe/SN8
Φ40	40±2.0	53.5±2.0	-	13±0.8	200	SN4/SN8	Protection of community weak current and street lamp cables	Φ40/PE Carbon Fiber Corrugated Pipe/SN8
Φ50	49.5±2.5	67±1.0	-	17±1.0	200	SN4/SN8	Protection of community weak current and street lamp cables	Φ50/PE Carbon Fiber Corrugated Pipe/SN8
Φ65	65±2.0	84.5±2.5	-	21±1.0	100	SN4/SN8	Protection of municipal weak current and small power cables	Φ65/PE Carbon Fiber Corrugated Pipe/SN8
Φ80	80±3.0	105±3.0	-	25±1.0	100	SN4/SN8	Protection of municipal weak current and small power cables	Φ80/PE Carbon Fiber Corrugated Pipe/SN8
Φ100	100±4.0	130±4.0	-	30±1.0	100	SN8	Protection of municipal power, communication cables and community strong current	Φ100/PE Carbon Fiber Corrugated Pipe/SN8
Φ125	125±4.0	160±4.0	-	38±1.0	50	SN8	Protection of municipal power, communication cables and community strong current	Φ125/PE Carbon Fiber Corrugated Pipe/SN8
Φ150	150±4.0	185±4.0	-	45±1.0	50	SN8/SN12.5	Protection of expressway, railway signal and power cables	Φ150/PE Carbon Fiber Corrugated Pipe/SN12.5
Φ175	175±4.0	230±4.0	-	55±1.0	40	SN8/SN12.5	Protection of expressway, railway signal and power cables	Φ175/PE Carbon Fiber Corrugated Pipe/SN12.5
Φ200	200±4.0	260±4.0	-	60±1.5	40	SN8/SN12.5	Protection of large-scale municipal pipe networks and heavy-load area cables	Φ200/PE Carbon Fiber Corrugated Pipe/SN12.5

Notes on pipelines：

1. The pipe has good flexibility, but the bending radius shall not be less than 10 times the pipe outer diameter, prohibit sharp bending and folding to avoid pipe cracking and damage.

2. Can be directly buried in ordinary soil, no need for concrete protective layer, but need to remove sharp hard objects in the trench to prevent pipe puncture.

3. Use special matching connectors for connection, ensure tight sealing, prevent water, sand and debris from entering the pipe, protect internal cables.

4. During construction, avoid mechanical rolling, heavy impact and extrusion, so as not to cause permanent deformation of the pipe and affect cable threading.

5. Suitable for low-voltage cable, street lamp, traffic signal line protection, prohibit use in high-voltage strong electric field and high-temperature environment.

6. Store away from heat sources, open fire and strong chemicals, avoid long-term sunlight exposure causing material aging and brittle fracture.
